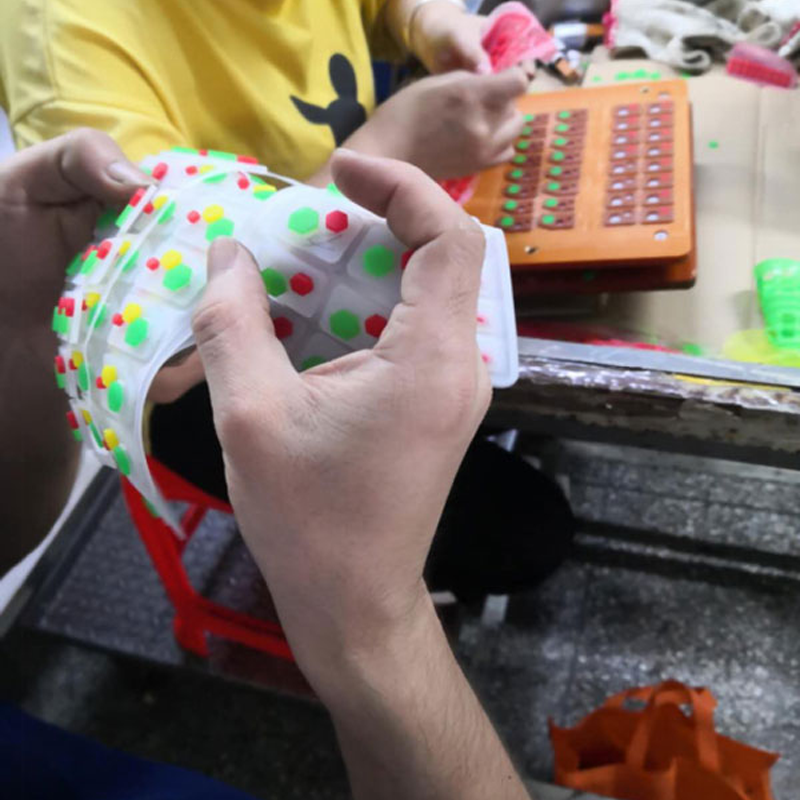

At Flykeyboard, we understand that precision and reliability are essential when manufacturing silicone rubber keypads. To ensure that each keypad performs optimally and meets our customers’ specifications, we implement a thorough and structured testing process. This includes evaluating the keyboard’s physical dimensions, mechanical functions, conductive properties, and durability. The following is a detailed overview of the rigorous tests we perform to verify that our silicone rubber keypads meet the highest standards of quality and functionality.
-
Keypad Dimension Testing
To ensure the proper fit and functionality of silicone rubber keypads, the first step in our testing process is to check the keypad dimensions. This step verifies that each component meets the customer’s technical drawings and tolerance requirements.
– Testing Method: We utilize high-precision measuring instruments such as digital calipers and micrometers to measure the length, width, and thickness of each key and the overall pad. We also check the key alignment and spacing to ensure accuracy.
– Tolerance Standard: If the customer does not provide specific tolerance requirements, we refer to the industry standard ISO 3302-M2, which outlines acceptable tolerances for rubber products. This standard ensures that the keypads are within the desired dimensional range and suitable for mass production.
-
Keypad Actuation Force Testing
The actuation force of a rubber keypad is a critical factor that determines the user experience. A key that requires too much force to press can be uncomfortable, while a key that requires too little force may not provide sufficient feedback.
– Testing Method: We use an actuation force testing machine, which measures the force needed to press each key of the keypad. The force is primarily influenced by the rubber button’s webbing thickness, material hardness, rebound force, and the surface coating.
– Standards: We adhere to strict force standards for each button, which are generally in the following range:
– For keys requiring a light touch: 20 ± 20-25g
– For moderate force keys: 100 ± 15-20g
– For heavier force keys: 150 ± 20-25g
– For very firm keys: 170 ± 25-30g
– For extra-heavy keys: 200-300g ± 50g
– Equipment Used: The testing machine measures the force with precise sensors and records the data to ensure consistency across all units.
-
Contact Resistance Testing

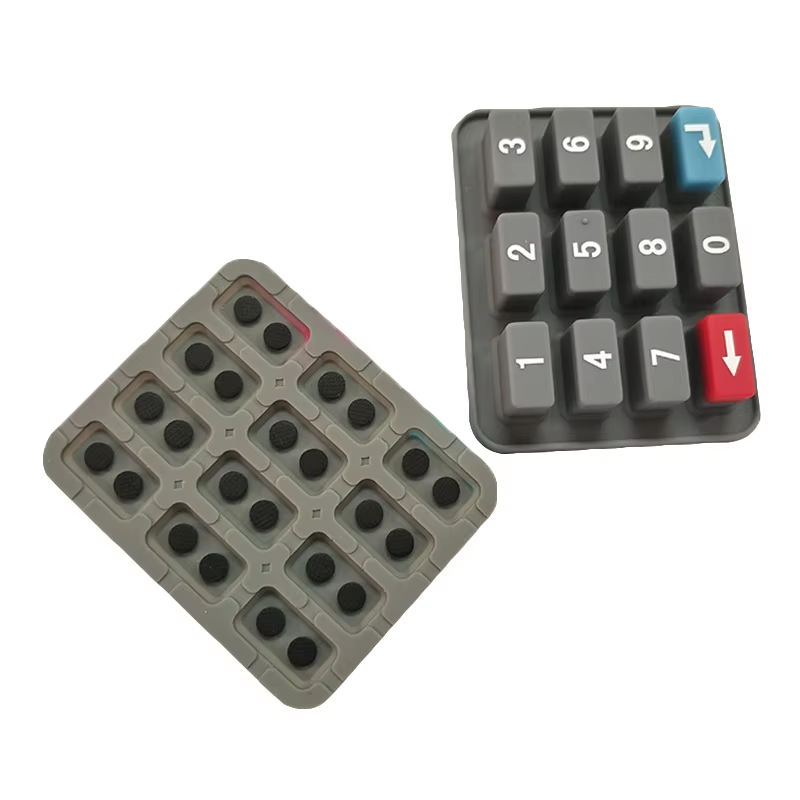

Conductive rubber keypads are designed with embedded conductive materials such as carbon pills or conductive inks. Ensuring proper contact resistance is essential for the functionality of the keypad, as it impacts the electrical signals passed from the button to the underlying circuit board.
– Testing Method: We use an avometer (digital multimeter) to measure the resistance of the conductive parts of the keypad. The resistance values must fall within specified limits for reliable performance.
– Standard Resistance Levels:
– Carbon pill resistance should be less than 100 ohms.
– Transfer printing conductive ink should be less than 2500 ohms.
– Silkscreen printing conductive ink should be less than 500 ohms.
– Equipment Used: The avometer is used to measure the resistance across different key areas, ensuring that each button functions properly when pressed.
-
Key Lifetime Testing
The durability of silicone rubber keypads is a critical factor, especially for applications involving high usage, such as in industrial environments or consumer electronics. We test the key lifetime to ensure that the keypad can withstand repeated presses without failure.
– Testing Method: We place the keypads onto a key lifetime testing machine, which simulates repeated pressing by applying force to each key at a consistent rate. The button webbing is tested to ensure it maintains its integrity, and the conductive parts are verified to stay intact.
– Test Conditions:
– After 100,000 presses, the keypad webbing should not show any signs of wear or deformation. The keys should still return to their original position after being pressed.
– After 200,000 presses, the conductive parts must remain intact and should not detach from the silicone material.
– Equipment Used: The testing machine applies pressure to each key at a frequency of two to five presses per second, ensuring accurate results over extended periods.
-
Surface Abrasion Testing
The surface durability of the silicone keypad is another critical factor, especially in terms of the legends (key labels) and coatings. In high-traffic environments, the button legends can wear off or the surface coating can degrade, negatively impacting the user experience.
– Testing Method: We use a keyboard alcohol abrasion machine to simulate the wear and tear caused by frequent use. The keypad is subjected to abrasive forces using a clean cloth that has been soaked in 75%-80% isopropyl alcohol. The cloth is moved across the button surface at a speed of 1.5 circles per second while a load of 500g is applied.
– Test Conditions: The keypads must withstand at least 100 cycles of abrasion before the legends or coatings begin to degrade. This ensures that the keypads can retain their legibility and aesthetic quality over time.
– Equipment Used: The alcohol abrasion machine ensures that the keys are subjected to consistent and accurate wear testing, allowing us to measure the surface durability.
-
Environmental and Chemical Resistance Testing
Silicone rubber keypads are often used in a variety of environments, including those exposed to extreme temperatures, humidity, and chemicals. To ensure their longevity and performance under these conditions, we conduct additional environmental and chemical resistance testing.
– Testing Method: The keypads are exposed to various chemicals, such as cleaning agents, oils, and solvents, as well as extreme temperatures ranging from -40°C to 120°C. We monitor the keypad’s ability to maintain its flexibility, strength, and conductive properties after exposure.
– Equipment Used: Environmental chambers are used to simulate extreme temperature and humidity conditions, while chemical resistance testing stations expose the keypads to a range of chemicals.
Conclusion
At Flykeyboard, our dedication to quality and precision is reflected in our comprehensive testing processes. Each silicone rubber keypad undergoes rigorous tests for dimensional accuracy, actuation force, contact resistance, key lifetime, and surface durability, as well as other environmental factors. By utilizing advanced testing equipment and adhering to strict industry standards, we ensure that our keypads meet or exceed customer expectations for both performance and durability. This commitment to quality helps us deliver reliable, high-performance products that are built to last, no matter the application.
