Description:

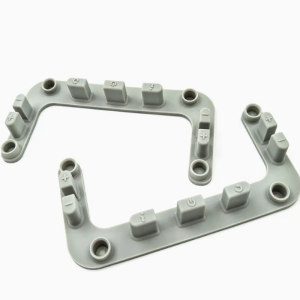

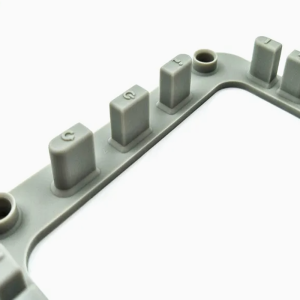

Silicone Compression Molding Conductive Carbon Pill Switch Keyboards are engineered for high-performance reliability in electronic devices, including calculators. Utilizing advanced silicone compression molding techniques and integrated carbon pill technology, these keypads provide outstanding flexibility, tactile feedback, and exceptional durability. Our facility specializes in delivering tailored, end-to-end solutions, offering comprehensive services from design through production to final delivery. With a focus on precision molding and the use of premium materials, we ensure the creation of high-quality keypads that meet your exact specifications.
Features:
– Material: Silicone
– Brand: OEM
– Certification: ISO, FDA, RoHS
– Color: Custom
– Materials Used: Silicone Rubber
– Working Temperature: -40°C to 230°C
– Contact Resistance: 10-200 ohm
– Conductive Method: Conductive Printing, Carbon Pills, Metal Dome
– Packaging: Custom
– Trademark: OEM
– Origin: Xiamen, China
– Production Capacity: 50,000 PCS/Week
Manufacturing Process:
- Material Preparation: Silicone rubber is pre-processed and mixed with conductive fillers, such as carbon pills, to ensure proper conductivity.
- Mold Design and Setup: Custom molds are designed and set up for compression molding, ensuring precision and accuracy.
- Compression Molding: The prepared silicone mixture is placed into the mold and compressed under heat to form the keypads with defined shapes and features.
- Carbon Pill Integration: Conductive carbon pills are inserted into the molds during the molding process, providing the required electrical conductivity for the switches.
- Post-Molding Curing: The molded keypads undergo curing to enhance durability and ensure proper material bonding.
- Inspection and Testing: Each keypad is inspected for quality, including checks for dimensional accuracy, tactile feedback, and electrical resistance.
- Customization and Packaging: The final product is customized according to customer specifications, packaged, and prepared for shipment.
Surface Coating Options for Silicone Keypads:
- Polyurethane (PU) Coating
A highly durable and flexible finish that offers superior resistance to abrasion, chemicals, and UV exposure, ensuring long-term protection with a smooth, glossy appearance.
- Matte Smooth Coating
This non-reflective coating creates a sleek, smooth surface that minimizes glare while offering a soft-touch feel. It also resists fingerprints and stains, maintaining a high-quality aesthetic.
- Epoxy Coating
A tough, resilient coating known for its exceptional adhesion, chemical resistance, and long-lasting durability. It delivers a glossy, smooth finish capable of withstanding demanding applications and environmental conditions.
- Laser Silicone Coating
An advanced coating technique that enhances tactile response and durability. Using precision laser technology, this method etches custom patterns on the surface, combining functionality with visual appeal.
Factory Overview:
Our state-of-the-art manufacturing facility incorporates advanced technologies such as CNC machining, Mirror EDM, conventional EDM, and slow-speed wire cutting (WC) to ensure the precise fabrication of molds. With 15 rubber compression molding machines and 2 LSR injection molding units, our production line is strategically optimized for operational efficiency, consistency, and scalable output.
To uphold stringent quality standards, we employ high-precision inspection tools, including 3D projectors, sealing testers, durometers, and elasticity gauges, all operated by certified quality control professionals. Our quality management system adheres to ISO 9001 and IATF 16949 standards, guaranteeing the production of reliable, high-performance components.
Additionally, automated systems like AutoDryers, high-speed doming machines, and precision die-cutting equipment enhance operational efficiency, improve process control, and ensure consistent product quality throughout every stage of manufacturing.
